Product name: VW3
Product Number:

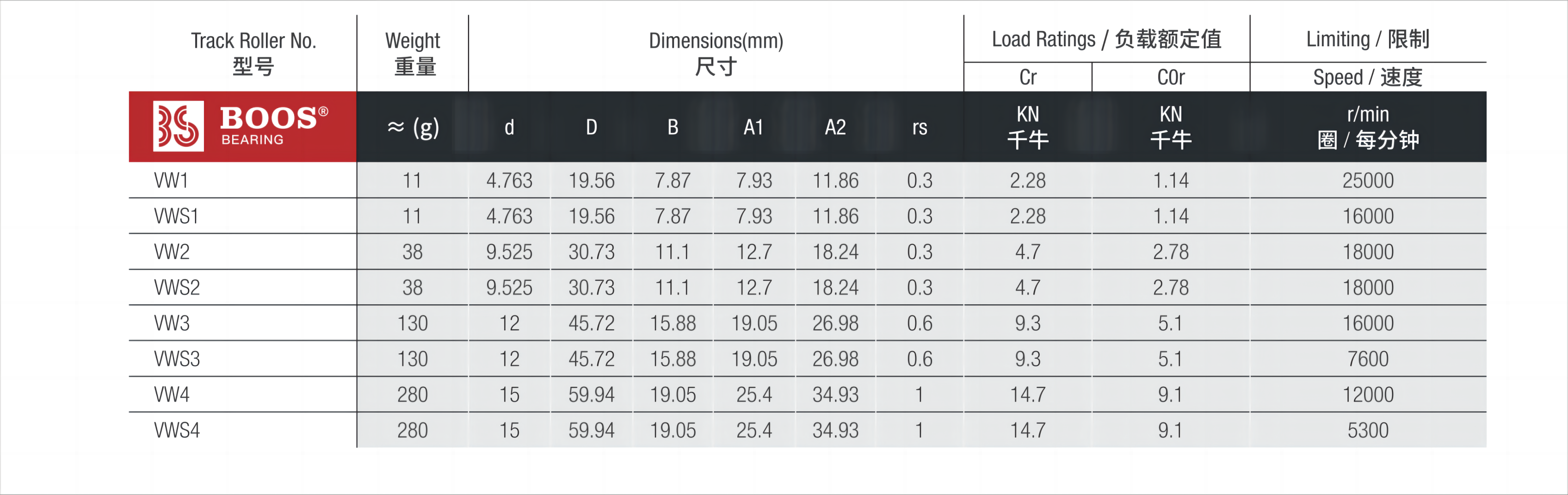

Product size: 12X45.72X15.88
Application: Automobile

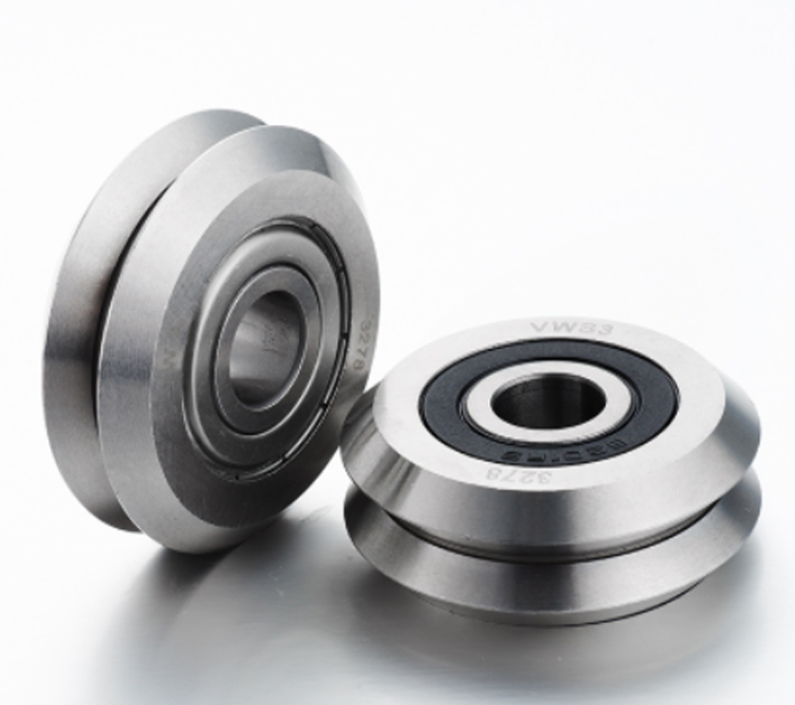

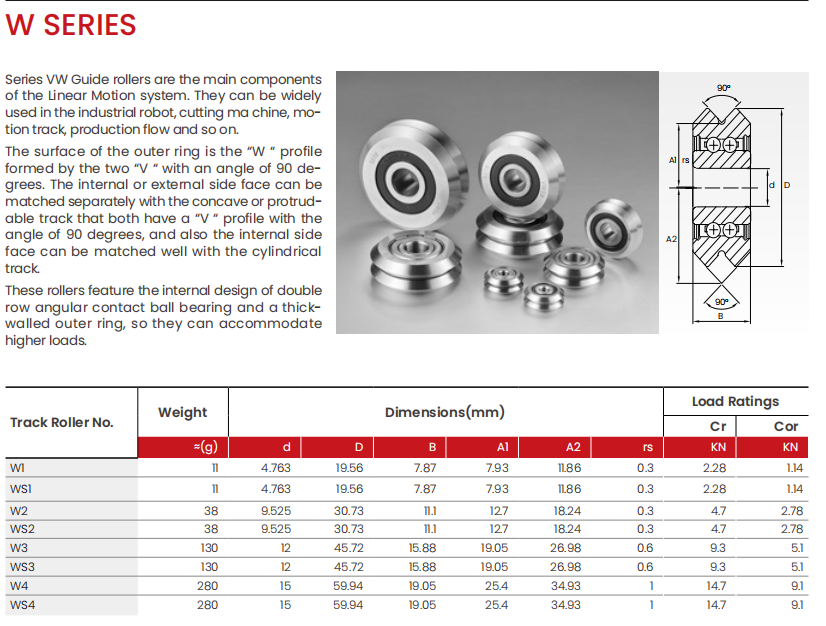

■ Series W Guide Wheels are the main components of the Linear Motion system, they can be widely used in the industrial robot, cutting machine, motion track. production flow and so on.

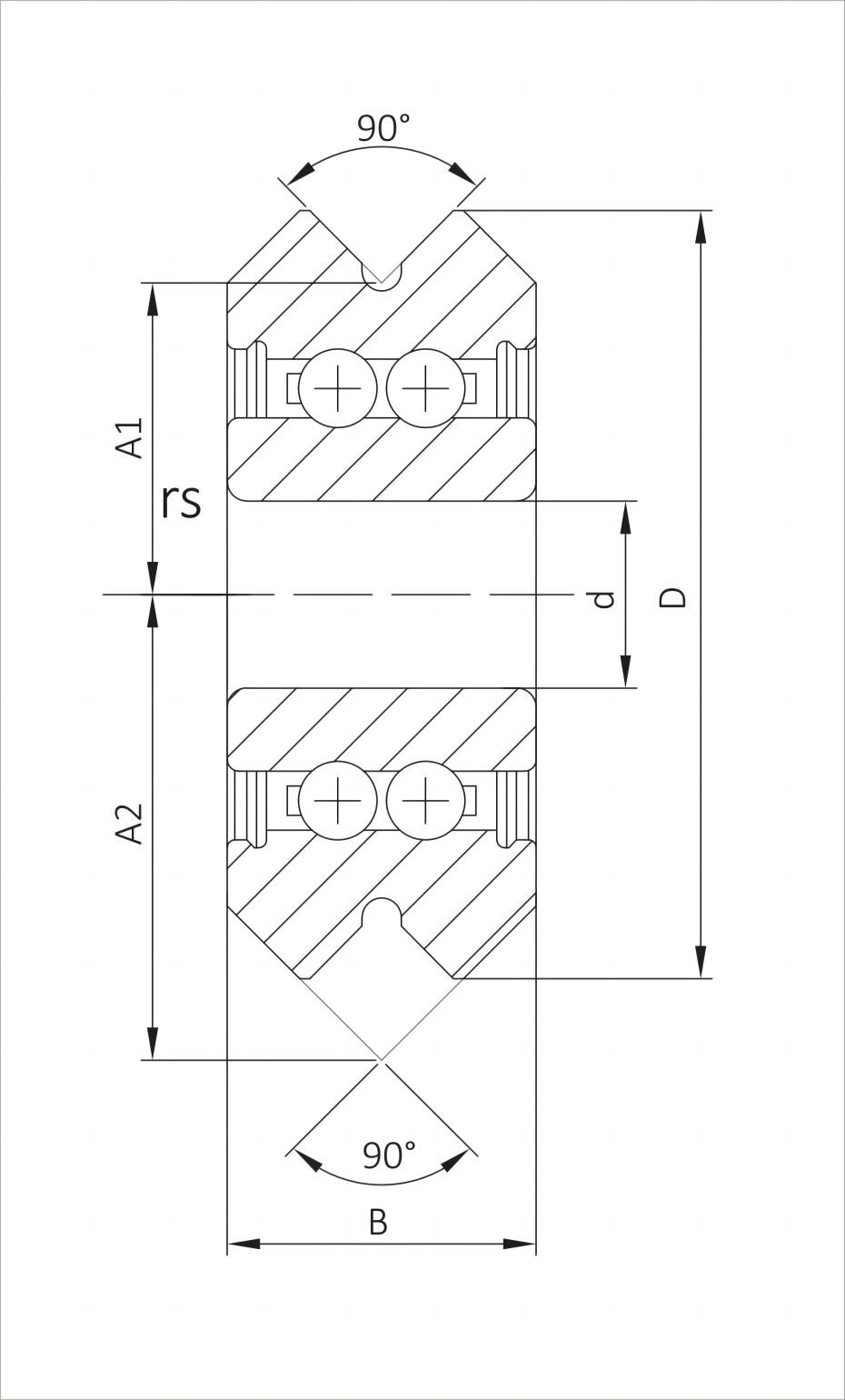

■ The surface of outer ring is the "W" profile formed by the two "V" with an angle of 90 degrees. The internal or external side face can be matched separately with the concave or protrudable track that both have a "V" profile with the angle of 90 degrees. and also the internal side face can be matched well with the cylindrical track.
■ Wheels feature the internal design of double row angular contact ball bearing and a thick-walled outer ring. so the wheels can accommodate
higher loads
